24U 650x650x1300 Standard Size Cabinet With DC48V Cooling And Fan For Cooling
19-inch outdoor communication cabinet, as a communication equipment protection facility designed for outdoor environment, has a series of unique characteristics.
The following is a detailed summary of its characteristics:
1. Standardized size
Width: 19 inches (about 48.26 cm), which is a standard width widely used in the industry, which is convenient for the installation and combination of various communication equipment.
Height and depth: The height and depth can be selected according to actual needs. Common specifications include 42U, 22U, 24U, etc., and the depth may include 60 cm, 80 cm, 100 cm or deeper options.
2. Sturdy and durable
Material: It is usually made of strong materials such as high-quality cold-rolled steel plates, and the surface is treated by sandblasting, plastic spraying and other processes to enhance acid and alkali resistance, corrosion resistance, anti-static and other properties.
Structural design: The structure is strong and has strong bearing capacity, which can effectively protect the internal equipment from external physical damage.
3. Adapt to outdoor environment
Protection level: It has a high protection level (such as IP level), can resist the intrusion of external factors such as water and dust, and adapt to various harsh outdoor environments.
Heat dissipation performance: The internal design is reasonable and well ventilated. It may be equipped with a fan or air conditioning system to reduce the temperature of the equipment and ensure that the equipment can operate normally even in high-temperature outdoor environments.
4. Flexibility and scalability
Modular design: It supports modular installation and configuration, and the internal space layout can be flexibly adjusted according to actual needs.
Scalability: With the increase or update of communication equipment, the cabinet can easily expand capacity or upgrade configuration.
5. Safety and convenience
Safety design: It has a reliable grounding design to ensure the safe operation of the equipment. At the same time, it may be equipped with safety devices such as advanced rotating cabinet door locks to prevent unauthorized access.
Convenience: The cabinet may be equipped with detachable side doors, front and rear doors and other components to facilitate the installation, commissioning and maintenance of the equipment. In addition, some cabinets also support the installation of casters and support feet at the same time for easy movement and fixation.
Feature of our cabinet
- Ingress protection is IP55
- Made of heavy gauge galvanized material.
- Front door use standard three-point anti-theft lock. The door lock forms an upper, middle and lower three-point locking structure. For the cabinet with large area, the locking effect is safe and reliable.
- Standard 19 inch mounting rails.
- It is installed in the ground root or above ground column base system
- Cable entry from the bottom of the cabinet
Specification Of ET6565130-EQ
| Model | ET6565130-EQ |
| Dimension | W×D×H 650×650×1300mm |
| 19” space and battery shelf | 24U |
| Door | One front door |
| Lock | Anti-theft three point lock for outdoor cabinet(support padlock) |
| Material | galvanized steel, with thermal insulation |
| Installation method | Floor mount |
| Cooling | Air conditioner Power supply: DC48V; Cooling Capacity: 500W |
| Illumination | 2pc LED lamp |
| Door sensor | Used for controlling led lamp on/ off |
| Working temperature | -40°C～+75°C |
| Ingress Protection | IP65 |
| Relative Humidity | 5% ~ 100% |
Common materials used to make outdoor cabinets:
- Stainless steel: Stainless steel is a popular material for outdoor cabinets because it is highly resistant to rust, corrosion, and weathering. It is also easy to clean and maintain, making it a good choice for applications where hygiene is important.
- Aluminum: Aluminum is another popular material for outdoor cabinets because it is lightweight, strong, and resistant to corrosion. It is also a good conductor of heat, which can be beneficial for applications where heat dissipation is important.
- Powder-coated steel: Powder-coated steel is steel that has been coated with a layer of paint that is baked on at high temperature. This coating provides a durable and weather-resistant finish that can protect against rust and corrosion.

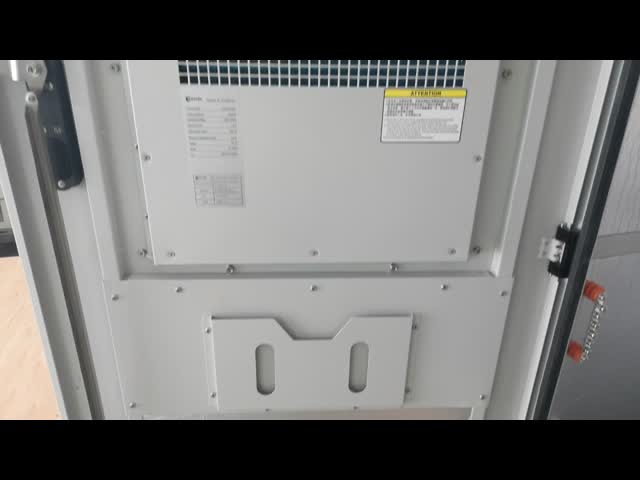

Air conditioner datasheet

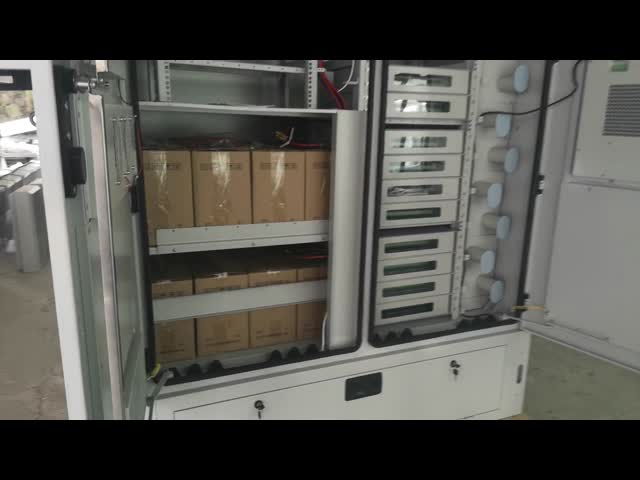

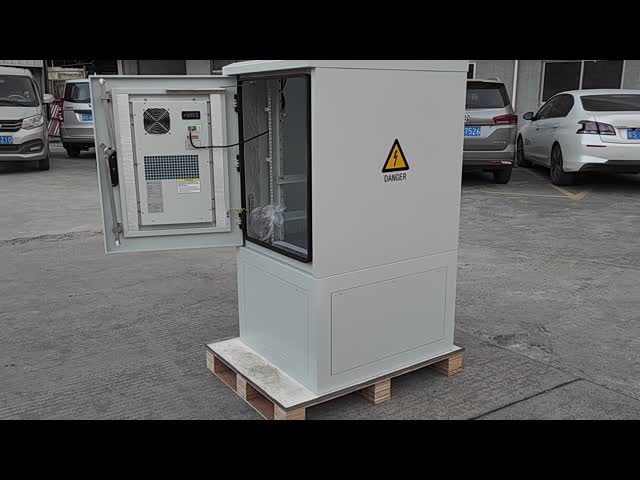

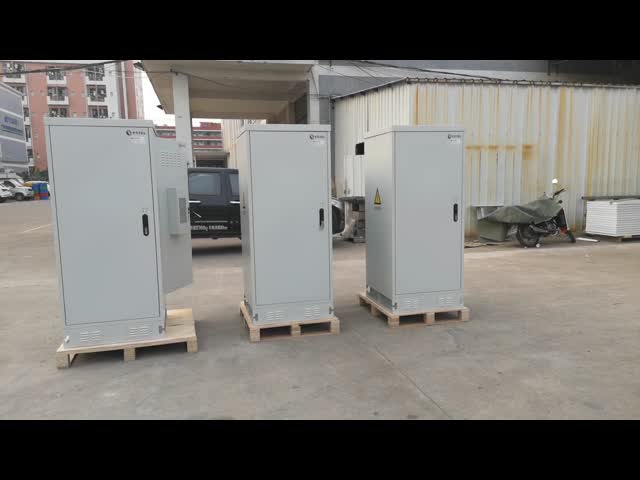

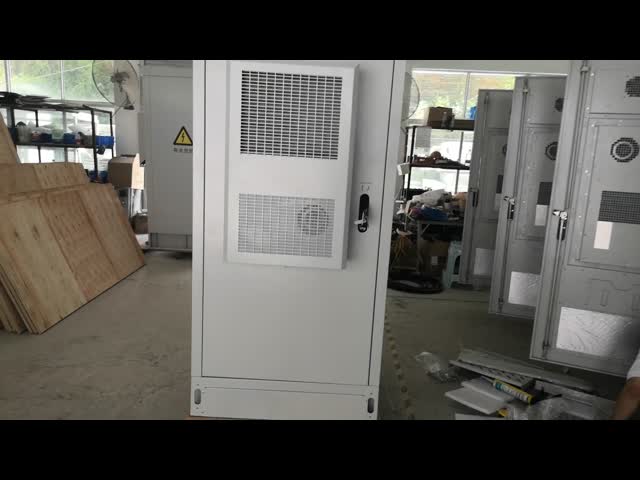

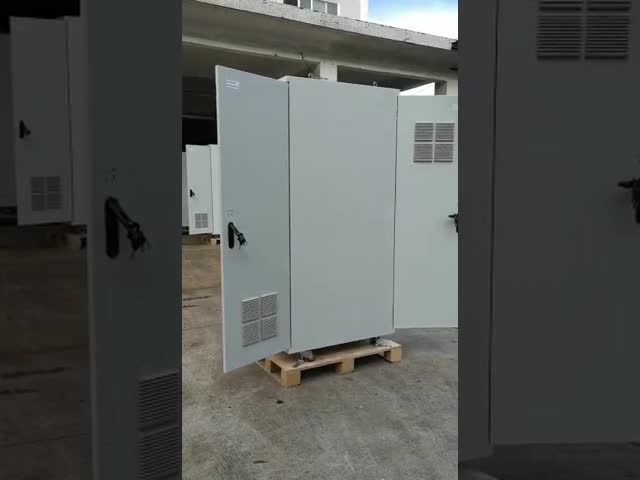

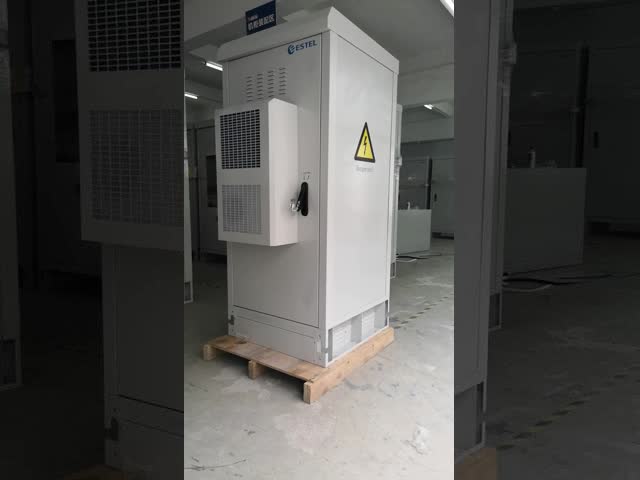

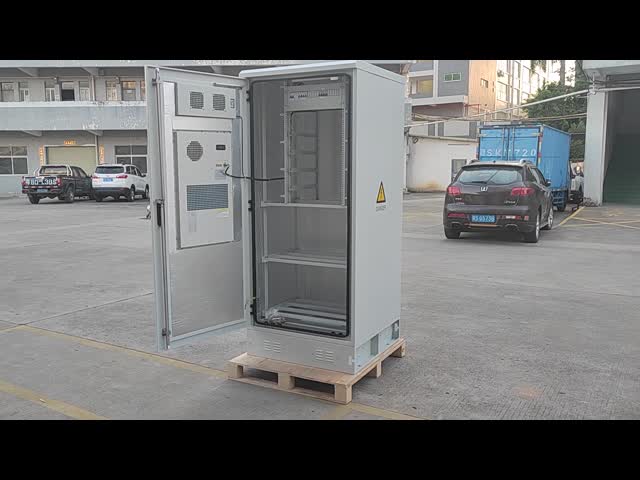

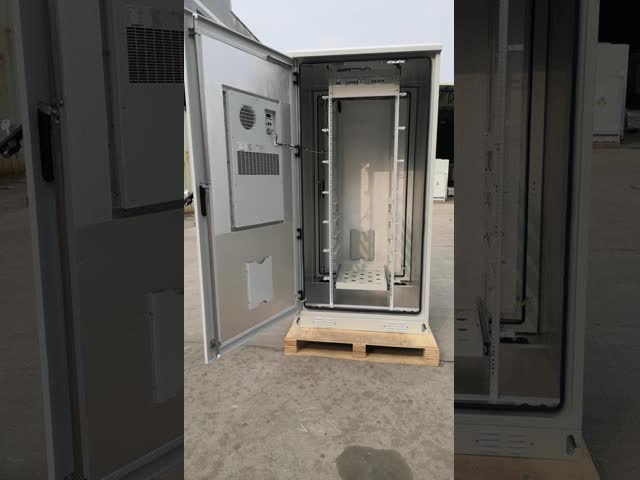

Cabinet pictures:
